FIXED-WING
- RC-scale UAVs to UL / LSA-class aircraft
- Airframe protection
- Cameras, LiDARs and onboard sensors
- Parachute-assisted landings
- Occupant protection potential
AIRBAG LANDINGPROTECTION FOR UAVS
Protect the aircraft.Give your mission a second chance.
RESBAG Systems develops lightweight airbag technology for UAVs equipped with emergency parachute recovery systems. By reducing touchdown loads and impact dynamics, the system helps protect airframes, sensors and valuable mission payloads.
Its impact-mitigation function can also support recovery-system safety objectives and M2 ground-risk mitigation compliance efforts under the EASA MoC to Light-UAS.2512 for the medium level of robustness.
Validated analytical modelPhysical drop testingEASA M2 mitigation support
MULTI-PLATFORM DEVELOPMENT
One principle. Different platforms.
The same protection principle can be adapted to fundamentally different aircraft geometries, mass distributions and payload arrangements — from compact UAVs to significantly larger aircraft.
MULTICOPTER
- Aircraft and payload protection
- LiDAR systems
- Cameras and EO / IR sensors
- Survey and measurement payloads
- High-value mission equipment
TESTING & VALIDATION
From model to physical validation.
RESBAG combines analytical prediction with instrumented physical testing to achieve defined impact-performance targets.
01MODEL & DESIGN
Predict before we build.
Geometry, pressure and venting are designed for defined impact conditions and target load levels.
02DEPLOYMENT TESTING
Verify the complete sequence.
Physical testing confirms reliable deployment and a stable protective geometry before touchdown.
03IMPACT VALIDATION
Measure the real response.
Instrumented testing validates predicted deceleration, deformation and energy-absorption behaviour.

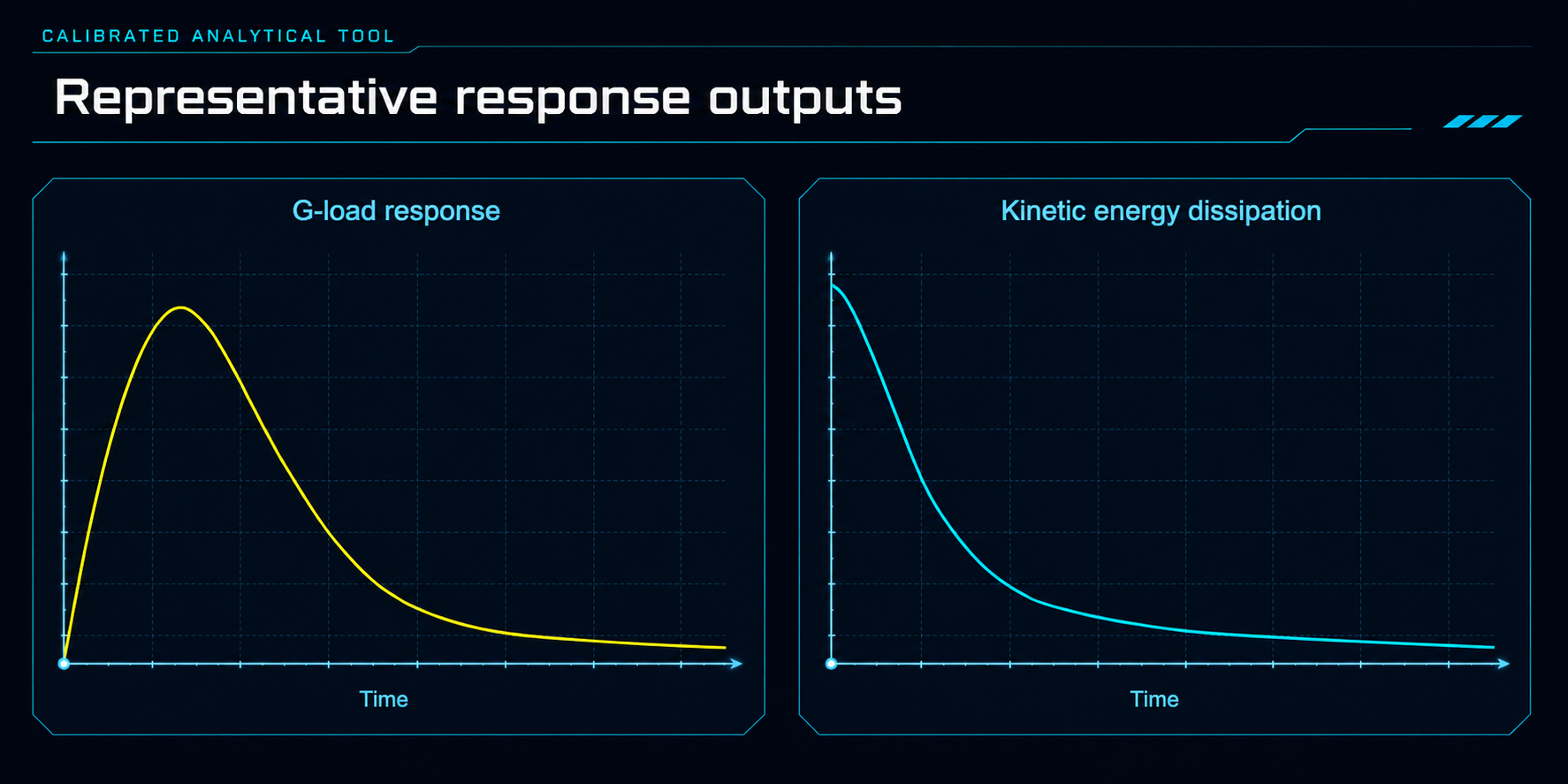

VALIDATED ENGINEERING MODEL
Designed for predictable performance.
Physical testing closely matches the analytical prediction, allowing RESBAG configurations to be tuned toward defined target load levels rather than developed by trial and error.

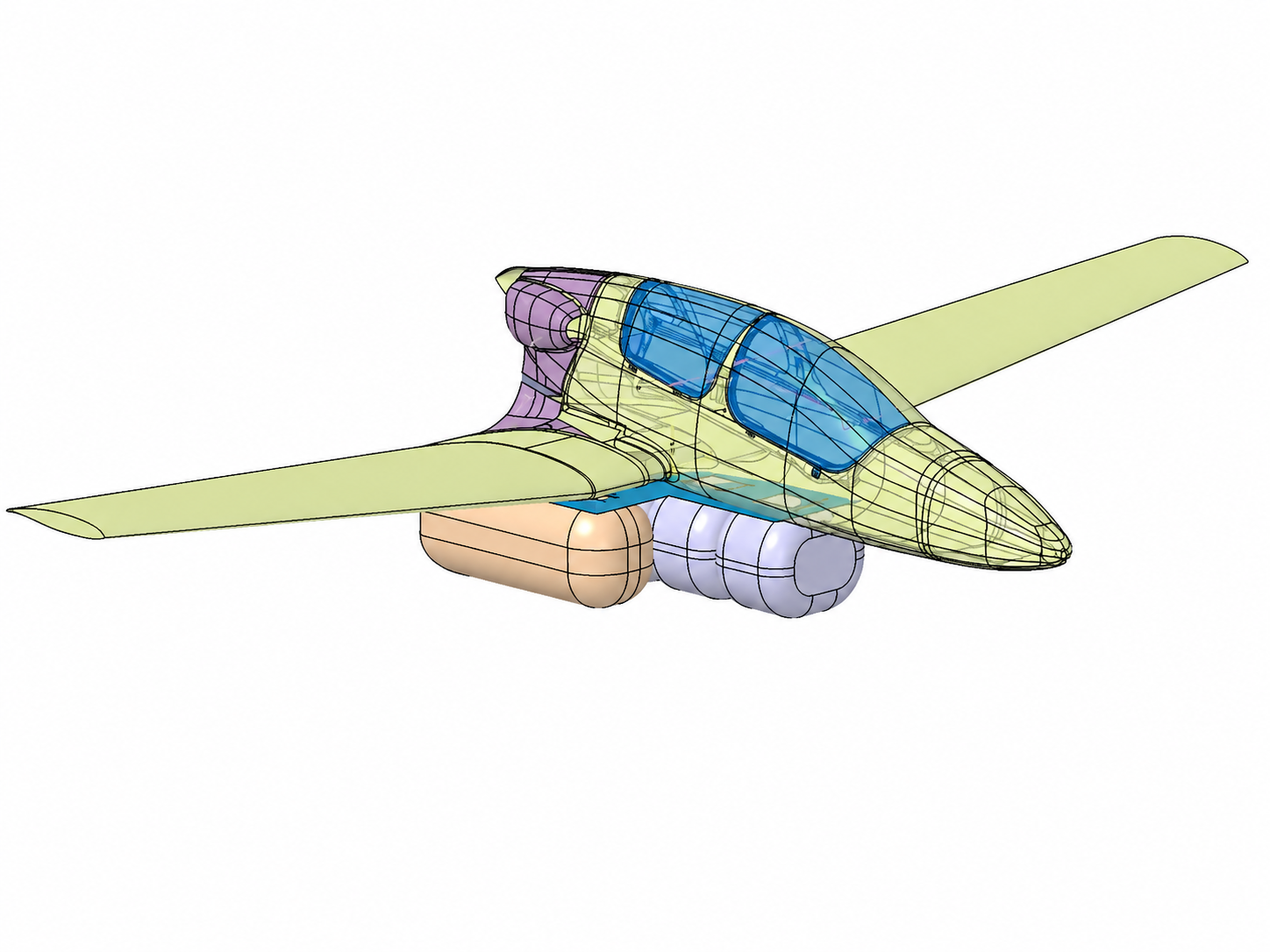

FIXED-WING TEST PLATFORM
Validated at meaningful scale
Physical testing confirmed the predicted response of the analytical model for a large multi-chamber configuration.
250 kgTest platform
6.57 m/sImpact speed
~10 GPeak load
>90%Impact energy reduction

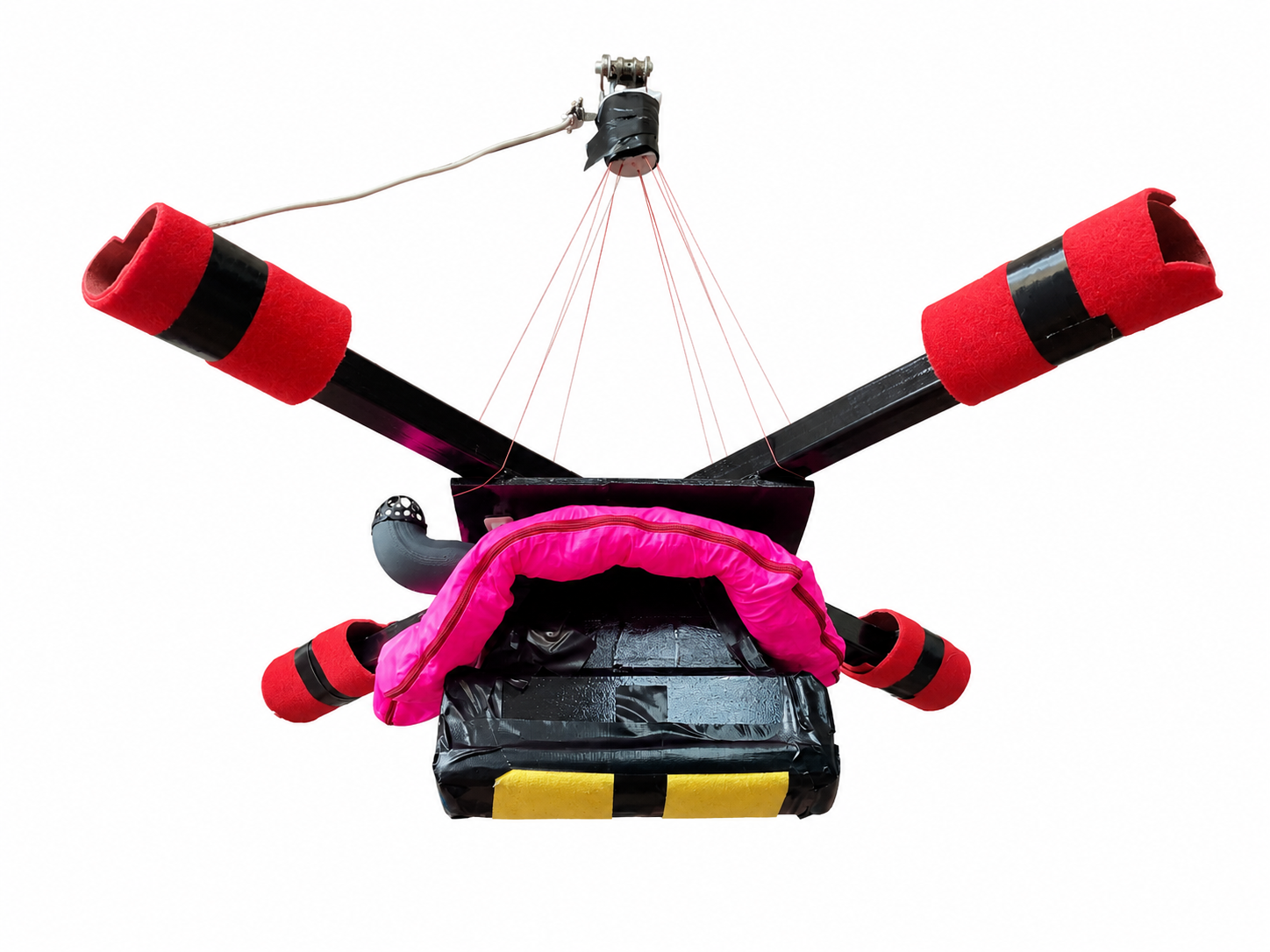

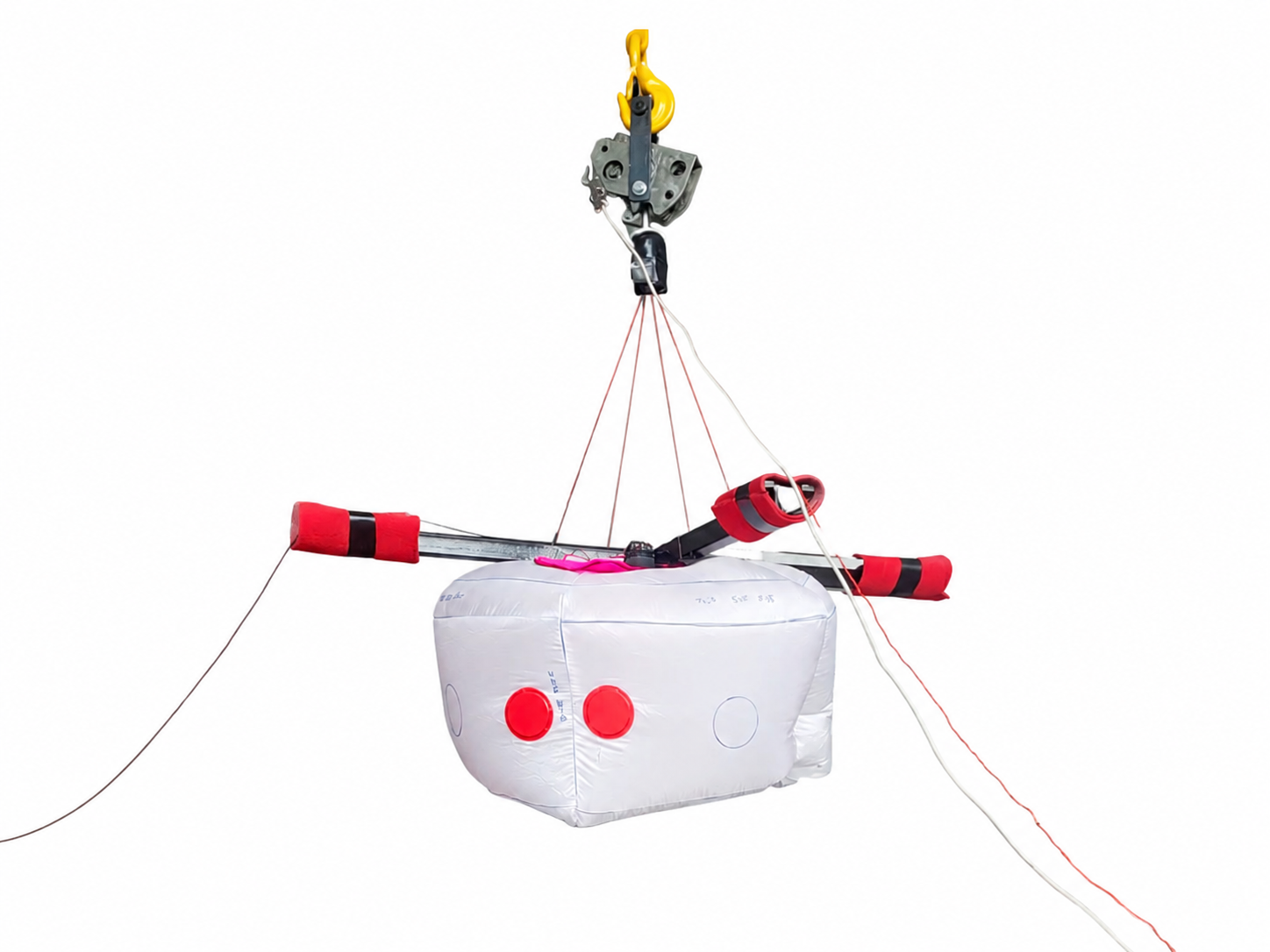

MULTICOPTER / LIDAR DEMONSTRATOR
Targeted payload protection
A compact demonstrator verified the same design principle on a fundamentally different geometry with a suspended sensor payload.
25 kgTest platform
4.5 m/sVertical speed
~10 GAchieved load
LiDARPayload protection
TECHNOLOGY
Protection activated for the final phase of recovery.
RESBAG complements the emergency parachute. The parachute controls the descent; the airbag manages the remaining touchdown energy and reduces the loads transmitted into the aircraft and payload.
Parachute activation
RESBAG interfaces with the emergency recovery system and starts the landing-protection sequence automatically.
Rapid deployment
The compactly stored airbag deploys and reaches its operating condition before touchdown.
Controlled energy absorption
The multi-chamber structure and calibrated venting extend the deceleration event and reduce peak loads.
APPLICATIONS
Built for aircraft where landing damage matters.
Fixed-wing UAVsMulticoptersLiDAR and mapping platformsDelivery aircraftSpecial-mission UAVs
PLATFORM INTEGRATION
Designed around the aircraft, recovery system and payload.
RESBAG is developed as a platform-specific protection system. Airbag geometry, installation, activation interface and impact characteristics can be adapted to the aircraft configuration and the components that need to be protected.
Aircraft geometryRecovery-system interfaceTarget impact loadsSensor and payload protection
ABOUT RESBAG
Developed for UAV manufacturers and recovery-system partners.
RESBAG Systems is a Czech technology company developing advanced airbag landing protection for unmanned aircraft. We combine platform integration, analytical design and physical validation to make emergency recovery more practical and less destructive.
